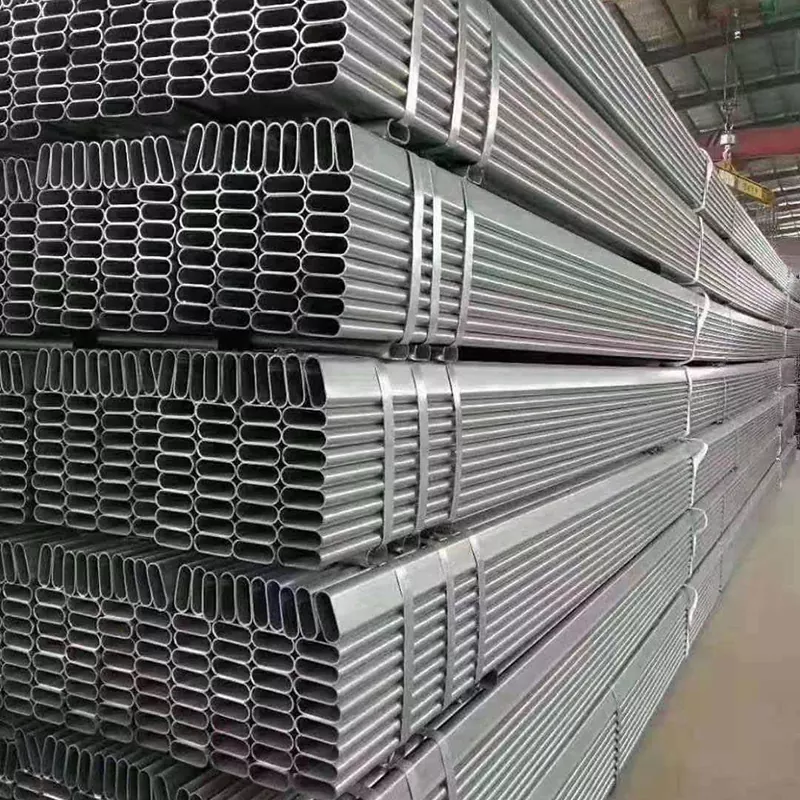

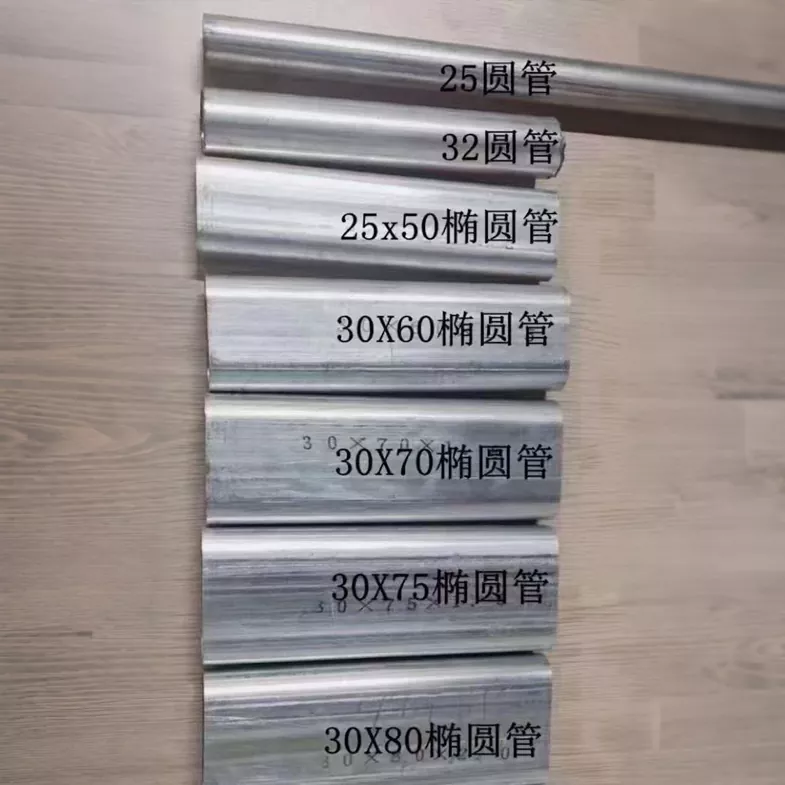

Galvanized Oval Steel Pipe

Xinlida Steel Pipe's galvanized oval steel pipes use ordinary carbon structural steel or low-alloy structural steel round pipes as the base material, forming a uniform and dense zinc layer on the inner and outer surfaces of the pipe through hot-dip galvanizing or electro-galvanizing processes. Its core function is to provide long-term corrosion protection for the base material through the sacrificial anode protection effect of the zinc layer, while retaining the basic performance of the round pipe in terms of pressure bearing, material conveying, and structural support. This product can be widely used in fluid transportation, structural support, frame construction, and other fields, suitable for various indoor and outdoor environments, and especially suitable for humid and highly corrosive conditions.

This product has five core advantages:

1. The zinc coating bonds tightly to the substrate, forming a double protective barrier that effectively prevents corrosion and extends service life to 20-30 years (depending on the usage environment), significantly reducing subsequent maintenance costs.

2. The substrate is made of high-quality steel, processed through multiple steps, resulting in excellent pressure strength, bending strength, and impact resistance.

3. It boasts excellent structural stability; its smooth surface is suitable for various connection methods such as welding and flange connections.

4. It is lighter than solid steel of the same specifications, facilitating handling and installation, and improving construction efficiency; compared with stainless steel pipes and other anti-corrosion pipes, its production cost is lower, achieving a balance between low cost and high durability.

5. Utilizing an environmentally friendly galvanizing process, it ensures that the zinc coating meets national standards and does not contain excessive harmful heavy metals, making it suitable for drinking water transportation, etc.

Application scenarios: Abandoned pipes can be recycled and reused, which is in line with the concept of green development.

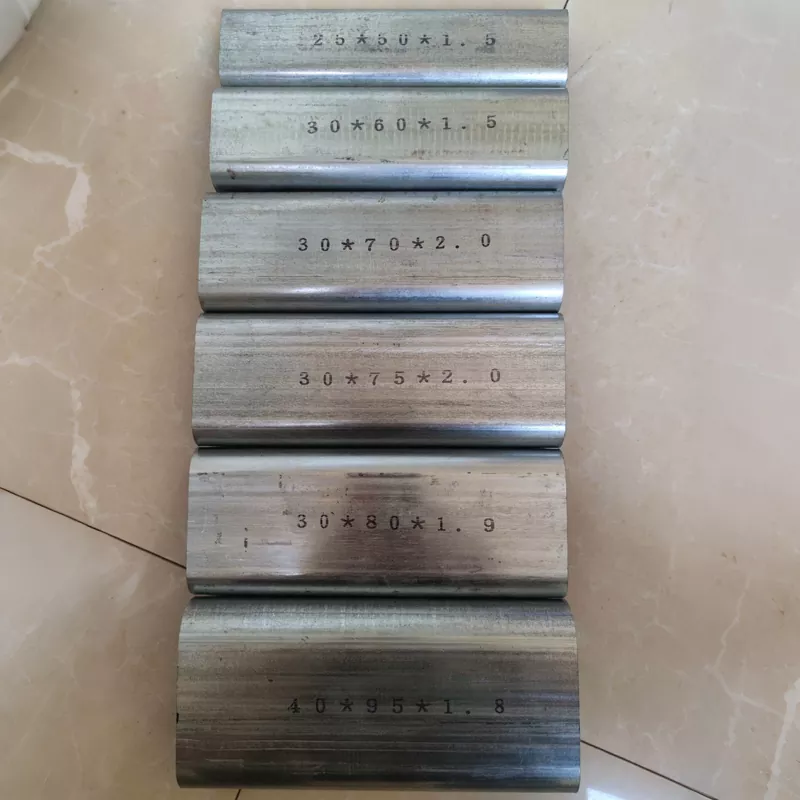

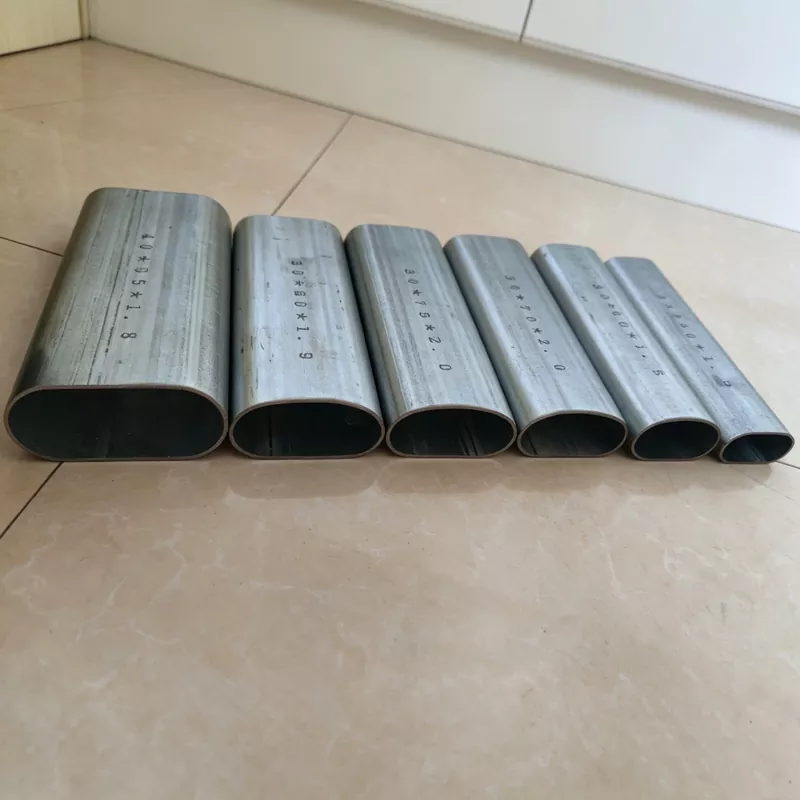

Product Specifications

Nominal diameter (DN): 15 mm to 600 mm, suitable for common household, industrial and municipal applications, and can be customized according to special specifications;

Outer diameter (φ): 18mm to 630mm, conforming to GB/T 3091-2015 standard, with an error ≤ ±0.5mm; Wall thickness (δ): 1.2mm to 12mm, selectable according to pressure requirements, commonly available in 2.0mm, 3.0mm, and 4.0mm specifications; Material: High-quality carbon structural steel/low-alloy structural steel (such as Q195, Q215, Q235, Q355), special materials can be customized according to requirements;

Galvanizing process: Hot-dip galvanizing (zinc layer thickness ≥ 85μm), electro-galvanizing (zinc layer thickness ≥ 12μm), conforming to GB/T13912-2020 standard;

Length: Standard length is 6 meters, 9-meter and 12-meter specifications are also available. Custom cutting is supported, with a length error ≤ ±50mm;

Product application scenarios

Application Scenarios: Urban water supply and drainage pipelines, natural gas transmission pipelines, municipal greening fences, street light pole supports, underground pipeline corridor supports, etc.

Case Study: A water supply and drainage pipeline renovation project in the old city area of a provincial capital city selected DN100-DN300 hot-dip galvanized round pipes as the main water transmission pipelines, with a total laying length of 28 kilometers. Thanks to their excellent corrosion resistance and adaptability to humid underground environments, the project effectively solved the problems of rust and leakage in the original pipelines, ensuring the safety of residents' water supply.

Construction Engineering Field

Application Scenarios: Main structure support construction, scaffolding erection, fire protection pipe installation, air conditioning and ventilation duct laying, roof drainage pipe installation, etc.

Case Study: A large commercial complex construction project used galvanized circular pipes ranging from DN50 to DN200 for the construction of a fire sprinkler system and scaffolding support system. The total weight of the pipes used exceeded 1,500 tons. This solution not only met the corrosion resistance and pressure resistance requirements of the fire protection pipes but also ensured the structural stability of the scaffolding. The project successfully passed fire safety and engineering quality acceptance.

New energy fieldApplication Scenarios: Photovoltaic power station brackets, auxiliary support structures for wind turbine towers, and frames for new energy charging piles, etc.

Case Study: A large-scale centralized photovoltaic power station project used φ48 × 3.0 hot-dip galvanized round tubes to manufacture photovoltaic module brackets, with a total output exceeding 800 tons. This bracket is suitable for outdoor, windy, and sandy environments. The zinc coating effectively resists ultraviolet radiation and wind and sand erosion, thus ensuring the service life of the bracket and the installation stability of the photovoltaic modules.Agricultural sector

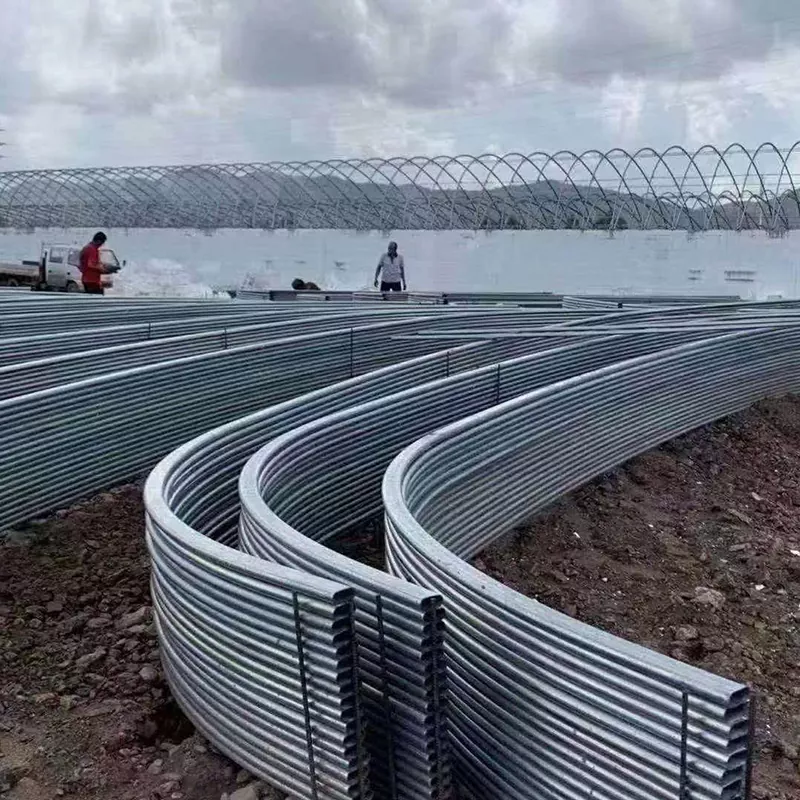

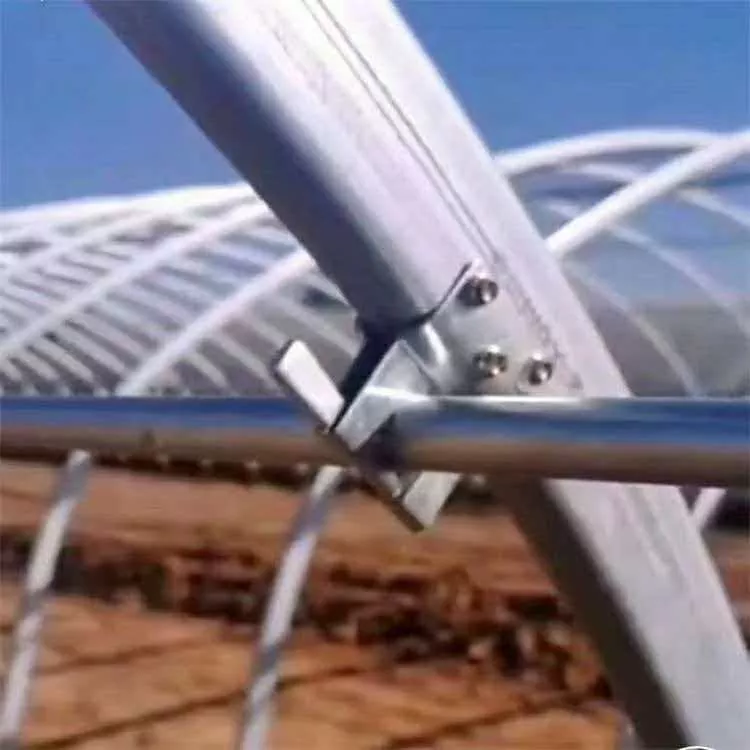

Application Scenarios: Greenhouse frames, farmland irrigation pipes, livestock shed construction, etc.

Case Study: A greenhouse construction project in a modern agricultural industrial park used galvanized round pipes of φ25 × 2.0 and φ32 × 2.5 specifications to construct the greenhouse frames, resulting in the construction of 50 standardized greenhouses. These pipes are lightweight, corrosion-resistant, suitable for the high humidity environment inside greenhouses, and have good load-bearing capacity, supporting the installation of insulation film and shade netting.

Why choose Xinlida Steel Pipes?

Xinlida Steel Pipe goes beyond simple product transactions, extending its core value to empower customers across the entire supply chain. In the pre-sales stage, Xinlida Steel Pipe provides professional technical consultation and selection support to help customers optimize solutions. During the sales stage, flexible production scheduling and an efficient logistics system ensure timely, high-quality, and sufficient delivery of orders, precisely matching project schedules. In the after-sales service stage, Xinlida Steel Pipe has established a rapid response mechanism, providing continuous technical support and quality tracking services. This "product + service" model significantly reduces customers' overall procurement costs and project coordination difficulties, achieving worry-free operation from supply to use.

Reliable Product Quality: The base material is made of high-quality steel, undergoing multiple precision processing steps including forming, welding, and galvanizing. The products have passed third-party testing, and all indicators meet national standards, exhibiting excellent corrosion resistance and mechanical properties, suitable for various complex working environments.

End-to-end service empowerment: Pre-sales service provides professional technical consultation and selection support to help optimize solutions; during the sales stage, flexible production scheduling and an efficient logistics system ensure timely, high-quality, and sufficient delivery of orders; after-sales service establishes a rapid response mechanism, providing continuous technical support and quality tracking services, thereby reducing overall procurement costs and simplifying project coordination processes.

Flexible specifications: Standard specifications are readily available, while supporting full customization of parameters such as nominal diameter, material, galvanizing process, and length to meet the personalized needs of different application scenarios.

Packaging and Transportation Guarantee: Standard packaging uses steel straps with plastic end caps. For export or special needs, fumigated wooden containers can be customized, complete with product labels to ensure traceability; transportation services cover major ports nationwide and overseas, providing door-to-door delivery. Standard-sized goods can be shipped within 1-3 business days, while customized products require 7-15 business days. We can arrange shipment within 1 business day, track logistics in real time after delivery, and immediately handle any damage or loss during transportation.
