Galvanized Flat Bar

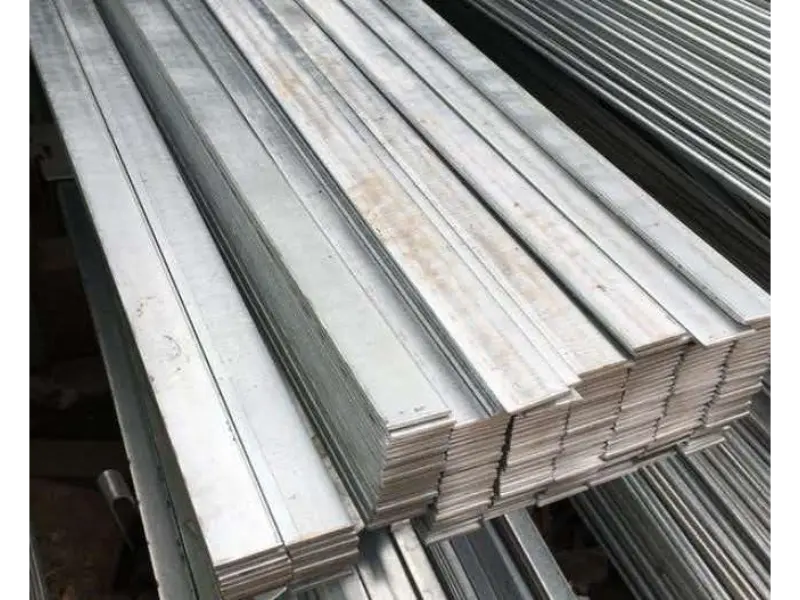

Galvanized flat bar is manufactured using Q235B or Q355B carbon steel as the base material, processed via electro-galvanizing or by using pre-galvanized strip steel. It features a flat, rectangular cross-section and is coated with a uniform layer of zinc, which acts as a barrier against air and moisture to provide fundamental rust protection. These products are suitable for use as indoor electrical components, equipment supports, cabinet connectors, machined parts, and indoor grounding elements. They can be easily bent, punched, or cut; their smooth surface facilitates subsequent processes such as powder coating or assembly, making them ideal for indoor steel structural components and hardware parts.

Core Functions and Benefits

1. Fundamental Rust Protection:

The zinc coating of galvanized flat bar forms a protective film that effectively slows down oxidation and rusting in indoor, dry, and well-ventilated environments (free from salt spray), thereby reducing the risk of corrosion-related waste during the storage of semi-finished products.

2. High Surface Flatness for Secondary Processing:

The finished product features a bright, uniform surface with minimal burrs. It is ready for direct punching, bending, cutting, or assembly, resulting in an aesthetically pleasing finish—perfect for exposed hardware components.

3. Stable Electrical Conductivity:

With a stable metallic base, this galvanized flat bar can be used for indoor low-voltage grounding and equipment equipotential bonding, ensuring reliable electrical pathways.

4. Diverse Specifications and Flexible Cutting:

Available in widths from 10 mm to 300 mm and thicknesses from 3 mm to 60 mm. Standard lengths of 6 m, 9 m, and 12 m are offered, with options for custom cutting and slitting to minimize raw material waste.

5. Cost-Effective with Rapid Availability:

Compared to hot-dip galvanized flat steel, this product offers a lower unit price. Standard specifications are kept in stock, making it an excellent choice for large-scale indoor component or mechanical parts projects where material budgets must be optimized.

6. Versatile Processing Options:

Supports both welding and bolted connections. If the zinc coating is damaged during welding, it can be easily repaired, making the material well-suited for the batch production of prefabricated components.

Galvanized Flat Bar vs. Hot-Dip Galvanized Flat Steel

Comparison Item	Galvanized Flat Bar (Electro-galvanized / Pre-galvanized strip)	Hot-dip Galvanized Flat Steel
Production Process	Electroplating or slitting from pre-galvanized strip; zinc layer attached physically to steel surface	Steel fully immersed in high-temperature molten zinc, forming metallurgical bonding between zinc and steel
Zinc Coating Thickness	Thin, generally 5-20μm	Thick, normally 40-100μm; heavy zinc coating available
Anti-corrosion Performance	Suitable for indoor, dry and non-salt-spray environments; shorter service life	For outdoor, coastal, humid and buried applications, long-lasting corrosion protection
Appearance	Bright and fine surface, good visual effect	Silver-grey surface with minor zinc spangles, relatively rough texture
Machining Feature	No peeling easily during bending, ideal for precision processing & decorative parts	Zinc coating may partially flake under sharp heavy bending; mainly for structural components
Application Scenarios	Indoor equipment supports, cabinet accessories, indoor earthing for weak current, hardware fabrication	PV earthing, lightning protection for power system, outdoor steel structures, buried components
Procurement Cost	Lower price, fit for cost-controlled projects	Higher unit price, recommended for long-term outdoor engineering

Customization Process

1. Client submits requirements:

Specify width, thickness, length, material, surface finish, any cutting/drilling needs, order quantity, and destination.

2. Our technical team verifies the parameters of galvanized flat bar, assesses production feasibility, and issues a formal quotation.

3. Both parties confirm the contract, technical standards, and inspection requirements; the client makes an advance payment.

4. Production is scheduled; dimensions and surface quality are spot-checked during the manufacturing process.

5. Upon completion, finished products undergo factory inspection (third-party inspection can also be arranged).

6. The client settles the final balance; goods are packed and loaded into containers, with full documentation provided and shipment arranged.

7. Logistics updates are shared during transit, and after-sales support is provided upon arrival.

Packaging and Shipping

Packaging:

As the zinc coating on galvanized flat bar is relatively thin and susceptible to "white rust" (zinc oxidation), dents, or scratches, we implement specialized protective packaging, with distinct protocols for domestic versus export (ocean freight) orders.

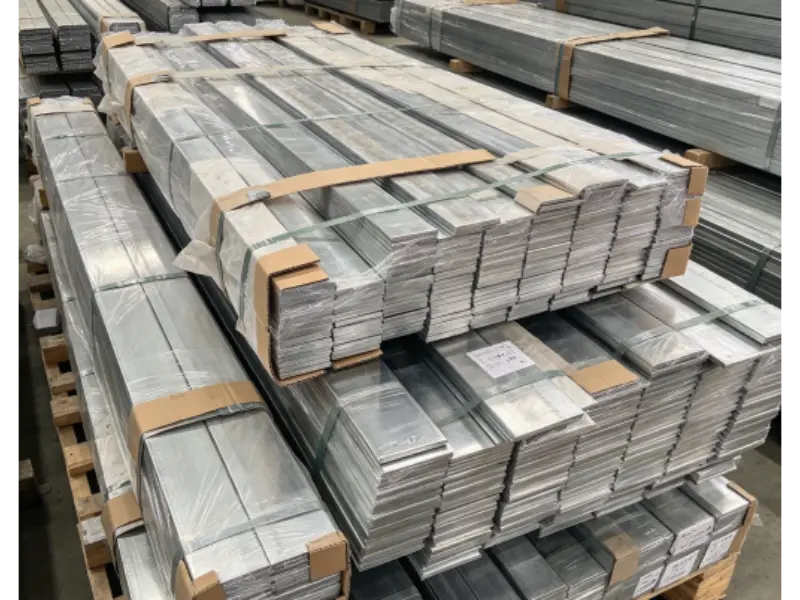

Individual flat steel bars are aligned and bundled together. Each bundle is secured with multiple high-strength steel straps, and hard plastic corner protectors are applied to both ends to prevent damage to the edges or the zinc coating during loading, unloading, or lifting. The steel is wrapped in waterproof, anti-rust kraft paper; for export orders, an additional layer of VCI (Volatile Corrosion Inhibitor) film is applied to inhibit the formation of white rust within the enclosed environment of a shipping container.

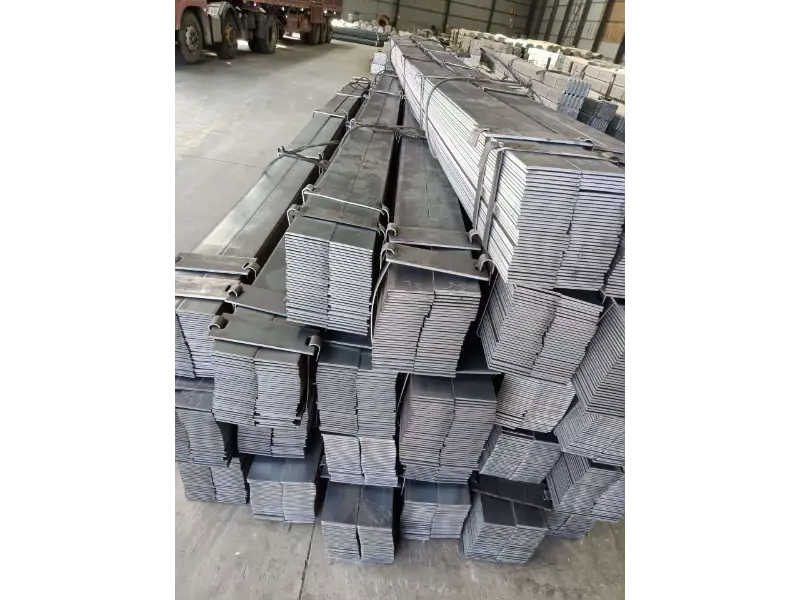

Once bundled, the steel is neatly stacked on fumigation-free solid wood pallets, which are reinforced and nailed securely. The pallets feature designated forklift slots to facilitate handling at ports and warehouses. The entire pallet is wrapped in stretch film to ensure the cargo remains stable and does not shift during ocean transit.

Shipping:

For in-stock orders, dispatch is arranged within 1–3 business days; we accommodate both full-container (FCL) and less-than-container (LCL) shipments. During container loading, the steel is secured with wooden wedges to prevent sliding or collisions during transit. The loading process is fully documented with photographs, and all necessary customs clearance documents are provided. We can arrange ocean freight to any port specified by the client, supporting international trade terms such as FOB and CIF.

Why Choose Us

Xinlida operates its own large-scale warehousing facilities, maintaining a constant stock of thousands of tons of galvanized flat bar. With a wide range of specifications always in inventory, we ensure a steady supply, unaffected by short-term fluctuations in steel prices. We have established long-term strategic partnerships with upstream steel mills to secure a stable supply of raw materials; whether you require a small trial order or a long-term annual framework agreement for thousands of tons, we guarantee consistent delivery. Our production scheduling is planned well in advance, with capacity allocated efficiently—ensuring that even during surges in order volume, we can meet agreed-upon delivery deadlines through phased shipments. We utilize a multi-warehouse distribution system, allowing for split shipments to accommodate the phased delivery requirements of overseas projects. For long-term international trade contracts, we offer price-locking mechanisms for specific periods, helping clients mitigate the risk of rising raw material costs—an ideal solution for long-term, stable procurement partnerships.

FAQ

Q1: Can the surface of the flat steel be painted?

A: Yes, but the galvanized layer must first be roughened (sanded) to improve paint adhesion; otherwise, the paint may peel off.

Q2: What causes small white spots to appear on the surface of galvanized flat bar?

A: These are typically "white rust" caused by exposure to moisture during storage. Simply keep the material in a dry environment; minor white rust does not affect the structural integrity of the base metal.

Q3: What is the allowable tolerance for order weight?

A: We adhere to national standards, ensuring weight tolerances remain within an acceptable range. The actual weight will be specified prior to shipment.

Q4: Is this flat steel suitable for use in welded embedded parts?

A: It is suitable for indoor embedded parts. Note that the welding process will burn off the galvanized coating; therefore, it is recommended to apply anti-rust treatment after welding.

Q5: Do surface scratches on the flat steel affect its service life?

A: Shallow scratches that only affect the outer galvanized layer have minimal impact; however, deep scratches that expose the underlying steel are prone to rusting at the damaged site.

Q6: Can you provide samples, and is there a charge?

A: We can provide small samples; the sample fee can be credited toward future bulk orders.
